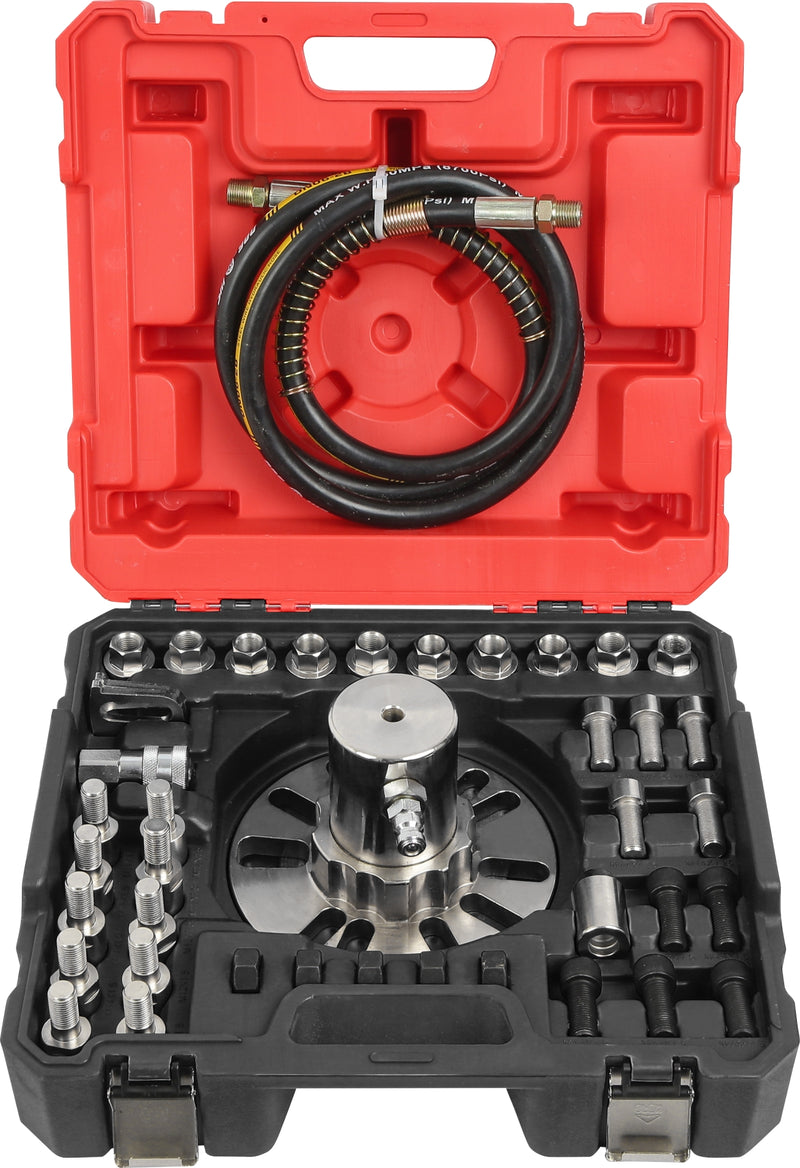

CT7365 - 10T Hydraulic Wheel Hub Removal Kit

Designed specifically for separating the transmission shaft from the hub. The plate is secured to the wheel bolt threads, and a central bolt is used to apply controlled force, pushing the drive shaft out of the hub safely and efficiently.
To operate the tool, select the appropriate output shaft adaptor to suit the central screw and secure it into the transmission shaft. Position the frame, tighten the retaining nut, and install the pulling screw to draw the wheel hub towards the drive shaft. This method ensures controlled, safe, and effective separation.
Contents include:
1 × Hydraulic cylinder head (up to 10-tonne capacity)
1 × High-pressure hose, 1 × Five-hole hub axle plate
10 × Extension screws: 5 × M14 × 1.5, 5 × M12 × 1.5
10 × Screws: 5 × M14 × 1.25, 5 × M14 × 1.5
10 × Nuts: 5 × M14 × 1.25, 5 × M14 × 1.5
2 × Magnetic spacer plates, 1 × Extension adaptor, 1 × Quick-connect coupler
