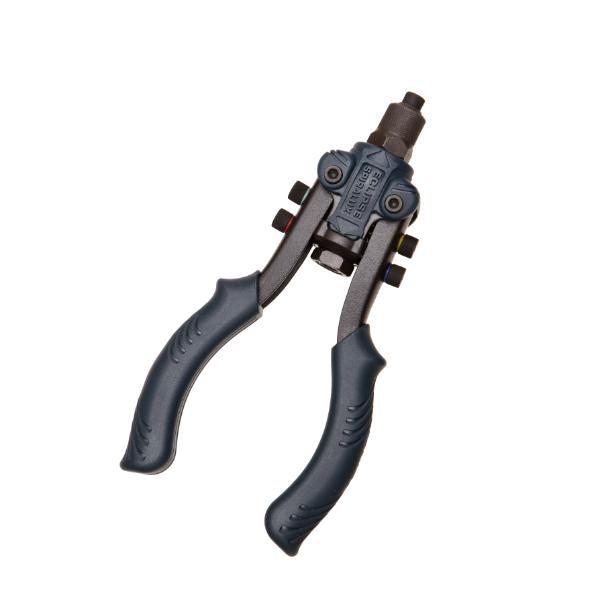

2760C-M - Eclipse Spiralux Compact Mini Lever Arm Riveter

Approximately 20% lighter and smaller than the Compact Riveter 2760C Requires less effort and is easier to use than traditional gun type riveters Requires fewer pulls to successfully pop rivets Fits conveniently into toolboxes Perfect for use in restricted spaces Easier on the arms and shoulder when popping lots of rivets.

• Nose Steel, Blacked & Knurled
• Nose dia. length and A/f size: 23.5 dia. x 31mm long & 24mm a/f
• Body Pantone 282C
• Blue Plastic moulding on steel Body width, breadth and length: 60 x 47 x 63.4mm excl. nut
• Levers Steel formed to 25 x 14 x 2mm thick.
• Lever length from Body: 200 ± 5mm
• Levers to Body Spring loaded and secured by M6 Cap screws & lock nuts

• Strong 3-piece alloy steel jaw mechanism with hexagonal internal structure for a longer life and easy operating
• Reinforced 2mm thick Carbon Steel heat-treated handle for extra strength and durability
• Ergonomically designed handles for comfortable use
• Contains rivet noses for use with 2.4mm, 3.2mm, 4.0mm, 4.8mm and 6.4mm aluminum and steel rivets To operate, pre-drill holes into the items
• Noses are colour coded by size for easy identification and may be conveniently changed with no need for extra tools
• To operate, pre-drill holes into the items being joined together, the optimum drill size is 0.1mm bigger than the size of the rivet
